Free deck drainage

Basic characteristic

ACO Marine has designed a wide range of multi-application, high performance galvanized steel deck scuppers.

The ACO Marine GM-X Steel range of scuppers is designed to provide quick, simple and economic trapped drainage solutions for decks, etc.

All floor finishes, including all resin screeds, ceramic tiles, flexible vinyl sheet in solid and suspended flooring applications are catered for.

Optional side inlet facilities are provided to fit the hand basin and the condensation waste pipes.

Typical Applications

  • Drainage for Free decks

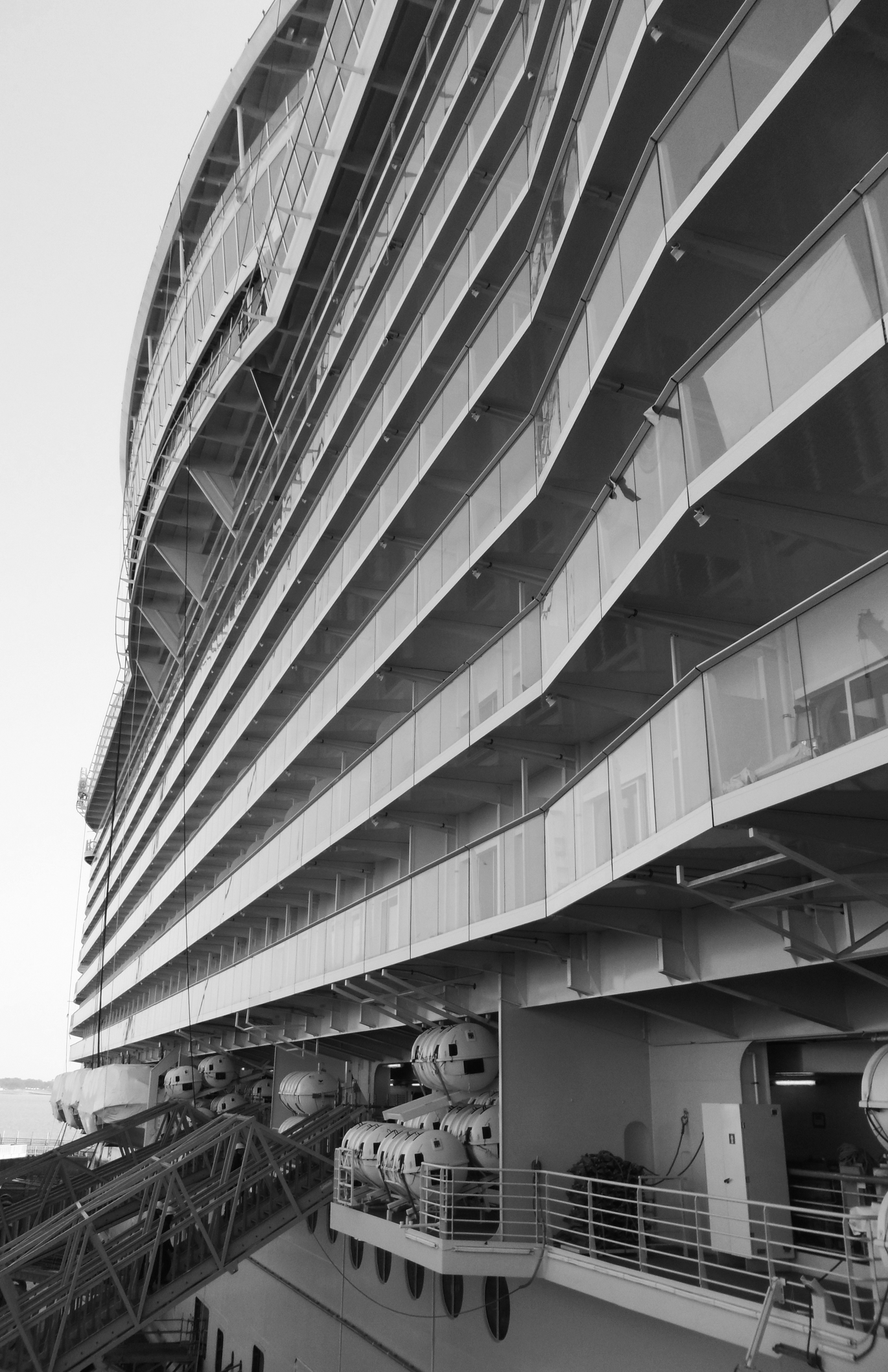

  • Exterior deck areas
  • Car deck surfaces

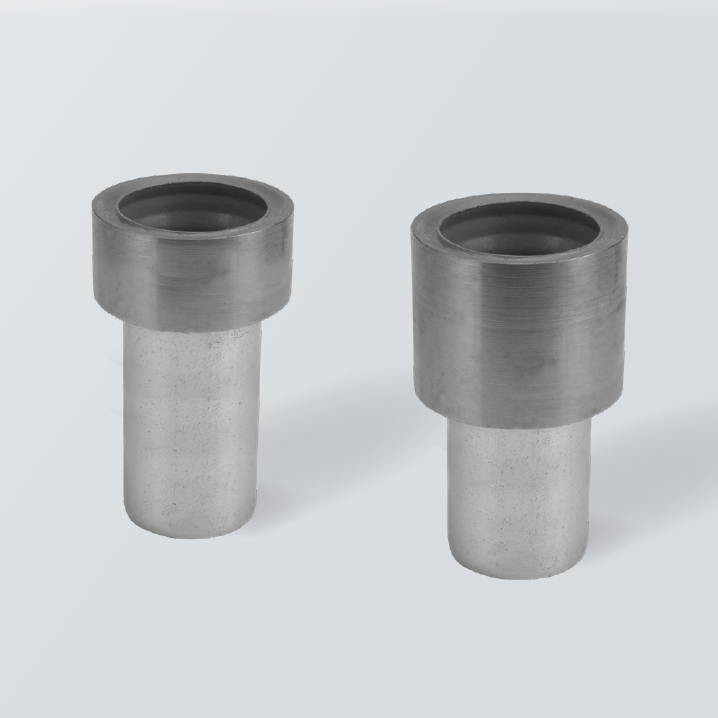

Galvanized Steel

Free deck galvanized steel scuppers are manufactured from welded, one-time colddrawn precision steel sheet in accordance with DIN 2394.

Tensile strength: Rm 310-410 N/mm2
Elongation at break: A5 min. 28%

As a material, the practical properties of steel include:

  • Virtually unbreakable
  • Dimensionally stable
  • Heat and frost proof
  • Favourable acoustic behaviour
  • Non-combustible
