Applications:

• Small roof areas, < 150 m² per gully
• Plenty of space
• Short collecting line

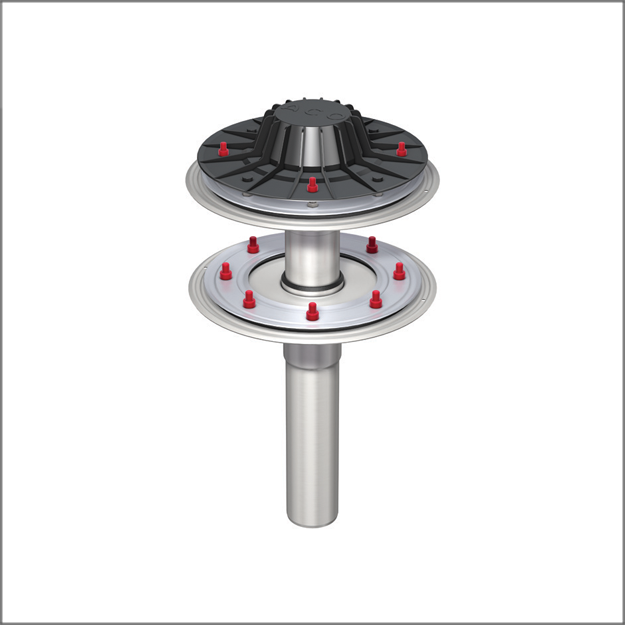

Applications:

• Large roof areas, ≥ 150 m² per gully
• Sufficient drop 4,200 mm between roof and pipe system
• Where installation options are restricted under the roof (no change of gradient possible)
• For long collecting lines

Applications:

• Roof parking zones

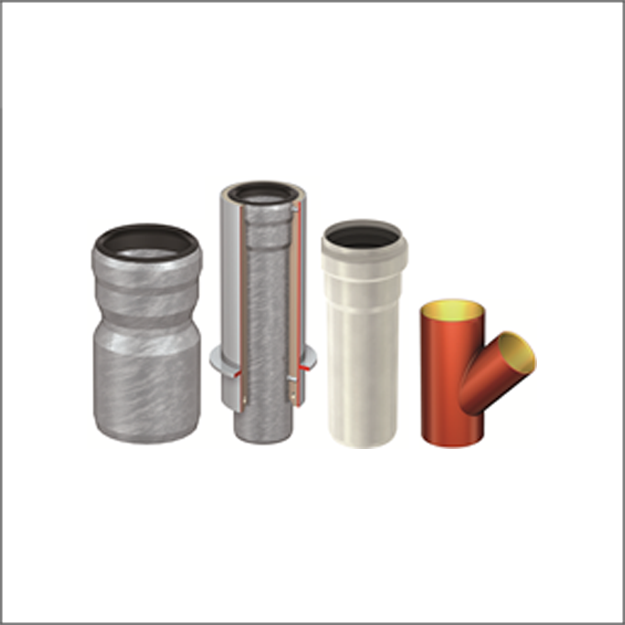

ACO pipe

• Stainless steel 1.4301 (AISI 304) and 1.4404 (AISI 316)
• Push-fit system for quick assembly

GM-X pipe

• Galvanised steel

SM-X pipe

• Cast iron pipes

• Systems made of following materials
• Cast iron
• Stainless steel

• Used for
• Small roof areas, < 150 m² per gully
• Plenty of space
• Short collecting line

• Systems made of following materials
• Cast iron
• Stainless steel

• Used for
• Large roof areas, ≥ 150 m² per gully
• Sufficient drop 4,200 mm between roof and pipe system
• Where installation options are restricted under the roof (no change of gradient possible)
• For long collecting lines

• ACO pipe
• Available in 1.4301 (AISI 304) and 1.4404 (AISI 316) grades of stainless steel
• Push-fit system for quick assembly
• Nominal widths: DN 50 - DN 315

• GM-X pipe
• Made from galvanised steel
• Nominal widths
• DN 40 – DN 250
• DN 250 – DN 300 (pipe without sockets)
