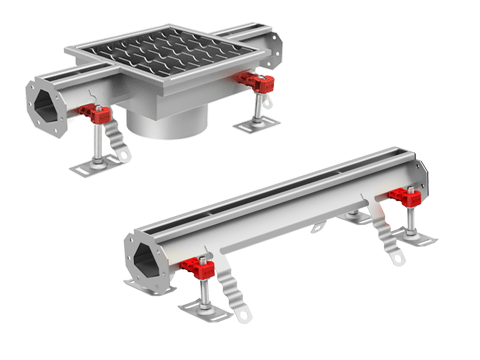

ACO modular slot channel

00d Modular Slot Channel
View in 3D

Our modular range with standardized 20 mm width provides a most versatile system with off-the-shelf availability. Accessories such as corner and branch units and a choice of gratings for wide range of load classes make this system a perfect option for many applications. Certified to EN 1433, CE marked.

Find out more about ACO modular slot channel at:
Online catalogue

00a

Gratings for ACO modular slot channel

Products 05 A5
View in 3D

Variety of grating types is available depending on application and requested load class. For applications with high hygienic demands ladder grating, cast grating or slot cover should be selected.

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document No. 8, 13 and 44
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Certified according to EN 1253-1
  • Range of gratings suitable to load class L 15, R 50, M 125 or N 250 (EN 1253-1)
  • Slip resistant solution available

00a
00a

Hygienic design

ICON - 02 No Standing Water 95
ICON - 00 White 14

no standing water

ICON - 03 Fully Inspectable 95
ICON - 00 White 14

fully inspectable

ICON - 04 Enhanced Floor Structure 95
ICON - 00 White 14

enhanced floor integration

ICON - 05 Final Surface 95
ICON - 00 White 14

final surface roughness
Ra <0,8

00a

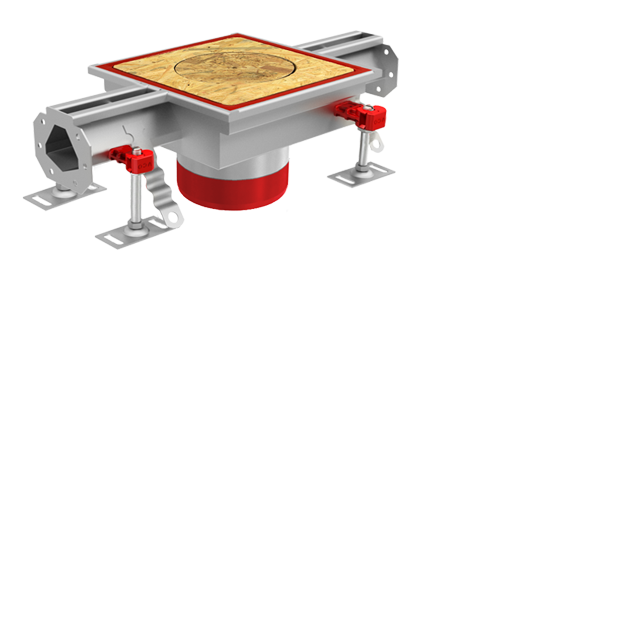

ACO protective covers

00d Modular Slot Channel Protective

Features and benefits:

  • Protection from building material debris
  • Eliminates cleaning of drainage after installation
  • Prevents injuries on worksite
  • Certified according to EN 12811-1 for scaffolding load class 3
  • Eco friendly and easily disposable

Order information

  • For standard articles, add _C at the end of product article number (example: 111111_C)
  • For semi-standard and customized articles, specify this option in the order process
