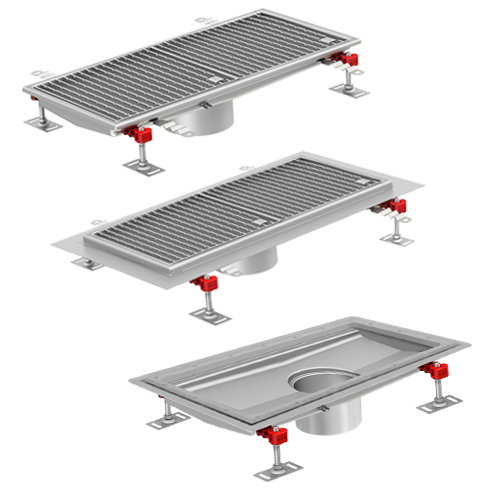

ACO box channel

The ACO box channel range incorporates the hygienic design principles to ensure the top hygienic performance. It is ideal for applications where there is a need to retain large volumes of fluid. Semi-standard or customized solutions are available on request.

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document No. 8, 13 and 44. The hygienic design doesn’t apply to vinyl box channel.

ACO hygienic box channels are tested and certified according to EN 1253-1 and EN 14159-1.

Gratings for load classes up to N 250 (EN 1253) available.

  • Round internal corners
  • Minimal slope 1% longitudinal and across on all areas
  • Reinforced bottom for widths larger than 300mm
  • Fire protective solution available

Find out more about ACO hygienic box channel at:
Online catalogue

Hygienic design

no standing water

internal radius larger than
+3 mm

fully inspectable

enhanced floor integration

final surface roughness
Ra <0,8

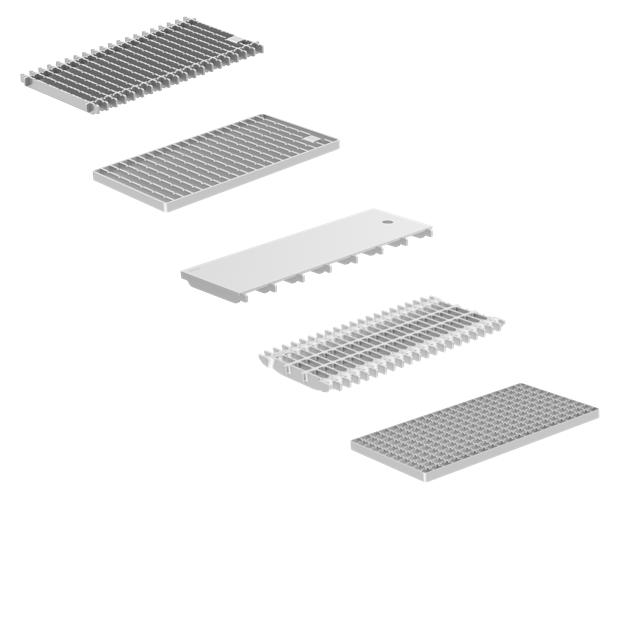

Gratings for ACO box channel

Variety of grating types is available depending on application and requested load class. For applications with high hygienic demands ladder grating, cast grating or slot cover should be selected.

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document No. 8, 13 and 44
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Certified according to EN 1253-1
  • Range of gratings suitable to load class L 15, R 50, M 125 or N 250 (EN 1253-1)
  • Slip resistant solution available

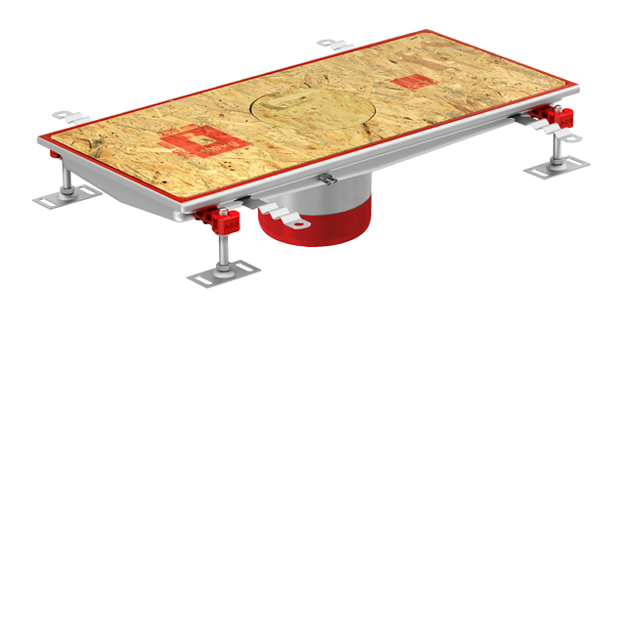

ACO protective covers

Features and benefits:

  • Protection from building material debris
  • Eliminates cleaning of drainage after installation
  • Prevents injuries on worksite
  • Certified according to EN 12811-1 for scaffolding load class 3
  • Eco friendly and easily disposable

Order information

  • For standard articles, add _C at the end of product article number (example: 111111_C)
  • For semi-standard and customized articles, specify this option in the order process
