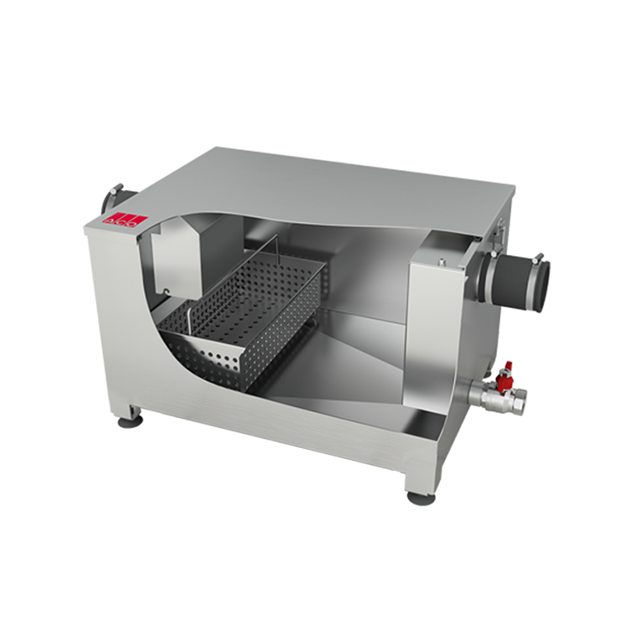

ACO AGT-40 - grease trap for under-sink installations

ACO grease trap AGT-40 – a below-sink grease trap which can be used in commercial kitchens and other foodservice establishments where space is limited and internal pipework needs to be protected.

The AGT-40 grease trap prevents grease and food waste from entering the waste water pipes and causing pipe blockages which can not only be disruptive but importantly can also compromise hygiene.

Find out more about ACO grease trap at: Downloads

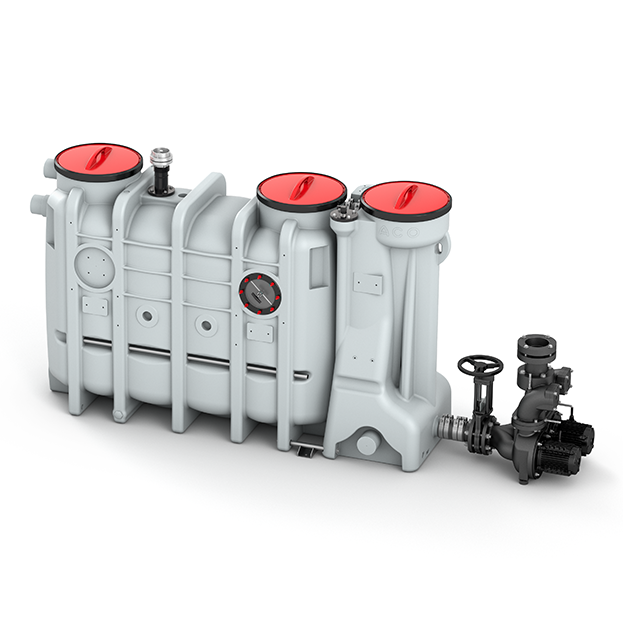

ACO LipuSmart - full disposal with integrated lifting plant

LipuSmart combines all key functions for the disposal of greasy wastewater in one single product. LipuSmart is a grease separator with integrated sampling unit, a lifting plant and a control system for the general plant. The compact design of the system makes LipuSmart easy to plan and install, compared to other separator systems. Interim piping of grease separator, sampling pot and the lifting plant is already integrated to the plant. As well, only one ventilation pipe instead of two must be installed.

ACO LipuSmart: the 4in1 solution.

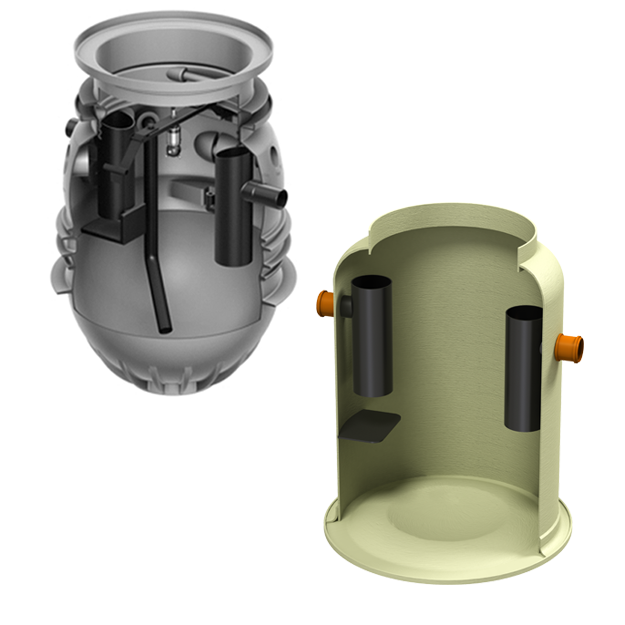

Ground installation

ACO grease separators Lipumax P for ground installation are made from polyethylene. The shaft has a buoyancy safety up to the upper side of the shaft and the manhole cover depending on the installation depth and the load class. The covers are designed up to load class D 400. Different levels and a wide range of accessories and components permit subsequent upgrade, extension or automation.

Find out more about ACO Grease separators for ground installation at:
Online catalogue

Free-standing installation

ACO grease separators for free-standing installations are available for partial or full disposal. In addition, there are also plants for mobile installation at snack bars. ACO grease separators are available in various designs for every building situation (for example, round, oval or split). Different levels and a wide range of accessories and components permit subsequent upgrade, extension or automation. ACO grease separators exist in different materials (polyethylene and stainless steel).

Find out more about ACO Grease separators for free-standing installation at:
Online catalogue

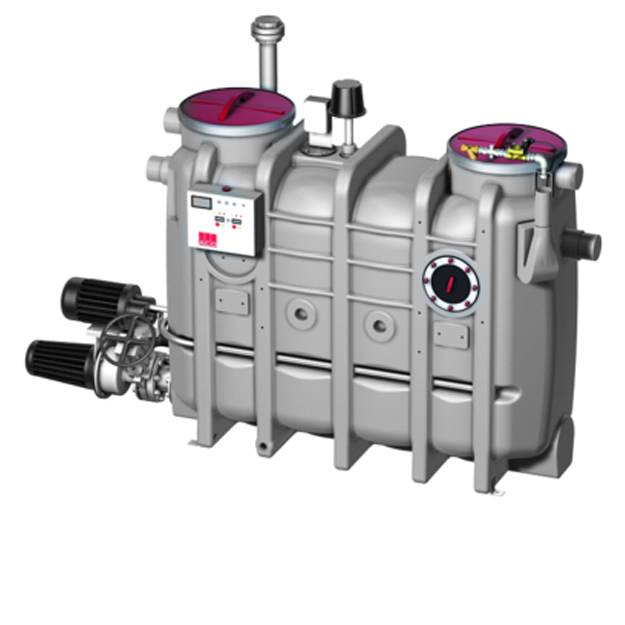

Full disposal

A grease separator for full disposal works purely physically using the gravity principle (different densities), i.e. heavier wastewater constituents sink to the bottom, light materials such as e.g. animal oils and fats rise in the grease separator to the top. Via the outlet socket the cleaned wastewater is fed into the sewage system. These separators can be supplied as oval, circular or segmented versions for ease of delivery. They are made of stainless steel or polyethylene.

Find out more about ACO Grease separator – full disposal at:
Online catalogue

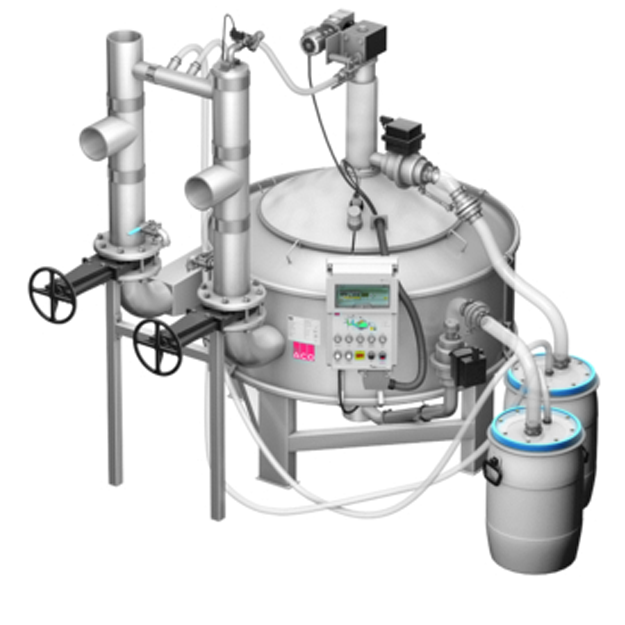

Partial disposal

A grease separator for partial disposal also works purely physically using the gravity principle (different densities). The separated materials (grease and sludge) are collected in separate containers. Via an outlet socket the cleaned wastewater is fed into the sewage system. Grease separator for partial disposal are ideally suited to installations without a direct access for drainage vehicles. They are made of stainless steel or polyethylene.

Find out more about ACO Grease separator – partial disposal at:
Online catalogue
