Super / Mega Yacht

Reference sheet 96m Superyacht

Briefing

ACO Marine was tasked with the engineering, design, manufacturing and delivery of the advanced wastewater treatment system. The system consists of a black and grey water collection system, transfer system and final wastewater treatment unit. All systems had to be delivered to the most demanding of standards expected in the yacht building industry with the latest technical and design innovations. Performance and reliability as always was a pre-requisite as these vessels often operate in environmentally sensitive of areas Vessel description An exclusive 96 metre superyacht built to the highest possible finish standard.  The name, owner and shipbuilder are subject to non-disclosure. The challenge set to ACO Marine was extremely demanding in terms of performance, absolute reliability and footprint size.

Total requested capacity was 22 m3 per day with full 100% treatment redundancy. Delivered solution Two off ACO Maripur 100 MBR units each complete with dedicated black water vacuum system mounted directly to the Maripurs. To minimise the maintenance space envelope units were built ‘mirrored so that all maintenance space could accessed from the central walkway in the compartment and at the fronts of the units.

Additional system components included:

  • One Grey Water transfer module
  • One remote Grey Water vacuum transfer system for crew shower and laundry area
  • ACO Pipe stainless steel push-fit pipe system

Capacity (based on project specific details)

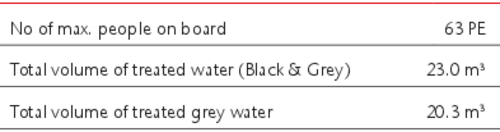

No of max. people on board 63
Total volume of treated water (Black & Grey) 23m3
Total volume of treated grey water 20.3 m3

Effluent water quality Effluent values and its comparison with alternative standards

IMO MEPC.2(VI) USCG 33CFR 159.PT1-300 USCG/Alaska 33CFR 159.309 IMO MEPC 159(55) ACO Maripur® IMO certified values
Coliform bacteria [n/100ml] 200 200 20 100 9
Total suspended solids [mg/l] 100 150 30 35 (70 at sea) 2
BOD5 [mg/l] 50 30 25 3
COD [mg/l] 125 45

Reference sheet 130m Megayacht

Briefing

ACO Marine was tasked with the engineering, design, manufacturing and delivery of the advanced wastewater treatment system. The requirement consisted of a black and grey water collection and transfer system, galley water grease separation unit and final wastewater treatment MBR. All delivered to the most demanding of yacht standards incorporating the latest technical and design innovations. Performance and reliability, as always, was a pre-requisite as these vessels often operate in environmentally sensitive of areas   Vessel description An exclusive 130 metre megayacht built to the highest possible finish standard.  The name, owner and shipbuilder are subject to non-disclosure. The challenge set to ACO Marine was extremely demanding in terms of performance, absolute reliability and footprint size. Total requested capacity was 40.8 m3 per day with full 100% treatment redundancy. Delivered solution Two off ACO Maripur 200 MBR units each complete with dedicated grey water transfer system mounted directly to the Maripurs.

Additional system components included:

  • Centralised Black Water Vacuum Collection and Transfer station
  • Vessel’s main wastewater collection tank Aeration System
  • Lipatomat NS7 automated grease and sludge separation system complete with treated water lift station and grease/sludge pumping units

Capacity (based on project specific details)

No of max. people on board 136 PE
Total volume of treated water  46 m3 each unit
Total volume of treated grey water  37.4 m3

Effluent water quality Effluent values and its comparison with alternative standards

IMO MEPC.2(VI) USCG 33CFR 159.PT1-300 USCG/Alaska 33CFR 159.309 IMO MEPC 159(55) ACO Maripur® IMO certified values
Coliform bacteria [n/100ml] 200 200 20 100 9
Total suspended solids [mg/l] 100 150 30 35 (70 at sea) 2
BOD5 [mg/l] 50 30 25 3
COD [mg/l] 125 45

Reference sheet 155m Megayacht

Briefing

ACO Marine was tasked with the engineering consultancy, design, manufacturing, delivery and installation of a galley water collection and transfer system with grease and sludge separation. All system components had to be delivered to the most demanding of standards expected in the yacht building industry with the latest technical and design innovations. Performance and reliability as always was a pre-requisite. Vessel description An exclusive 155 metre megayacht built to the highest possible finish standard.  The name, owner and shipbuilder are subject to non-disclosure. The challenge set to ACO Marine was extremely demanding in terms of performance, absolute reliability and footprint size. The Delivered solution Lipatomat NS7 automated grease and sludge separation system Capacity.

No of max. people on board  400 PE
Total volume of treated galley water  7 litres/sec

Effluent water quality Currently there is no specific marine legislation for the treatment of galley wastewater. However ACO Marine grease separation systems are designed and approved in accordance with DIN EN1825 and as such meets the technical requirements for inlet water standards to MBR wastewater treatment systems.

Reference sheet 180m Megayacht

Briefing

ACO Marine was tasked with the engineering, design, manufacturing and delivery of the advanced wastewater treatment system full this, the world’s largest privately owned megayacht. The system consists of a wastewater transfer system, wastewater collection tank aeration system, galley water grease separation unit and final wastewater treatment MBR. All systems had to be delivered to the most demanding of standards expected in the yacht building industry with the latest technical and design innovations. Performance and reliability as always was a pre-requisite as these vessels often operate in environmentally sensitive of areas Vessel description An exclusive 130 metre megayacht built to the highest possible finish standard.  The name, owner and shipbuilder are subject to non-disclosure. The challenge set to ACO Marine was extremely demanding in terms of performance, absolute reliability and footprint size. Total requested capacity was 40.8 m3 per day with full 100% treatment redundancy. Delivered solution ACO Maripur 150 (2-in-1 variant) MBR capable of operating at variable manning levels using the innovative dual load set mode. This eliminates the requirement for dual smaller MBR units during step changes in passenger loading.

Additional system components included:

  • Centralised wastewater Transfer station
  • Vessel’s main wastewater collection tank Aeration System
  • Lipatomat NS2 automated grease and sludge separation system

Capacity (based on project specific details)

No of max. people on board  90 PE
Total volume of treated water  36 m3
Total volume of treated grey water  33.75 m3

Effluent water quality Effluent values and its comparison with alternative standards

IMO MEPC.2(VI) USCG 33CFR 159.PT1-300 USCG/Alaska 33CFR 159.309 IMO MEPC 159(55) ACO Maripur® IMO certified values
Coliform bacteria [n/100ml] 200 200 20 100 9
Total suspended solids [mg/l] 100 150 30 35 (70 at sea) 2
BOD5 [mg/l] 50 30 25 3
COD [mg/l] 125 45
